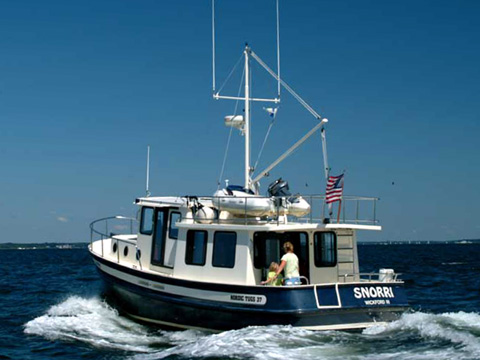

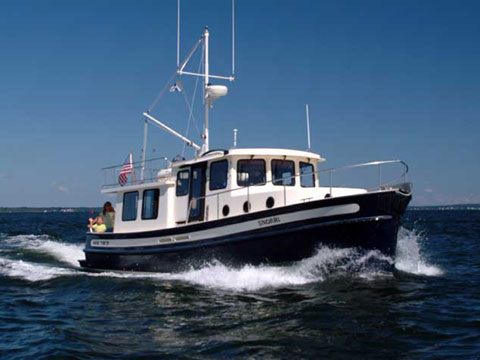

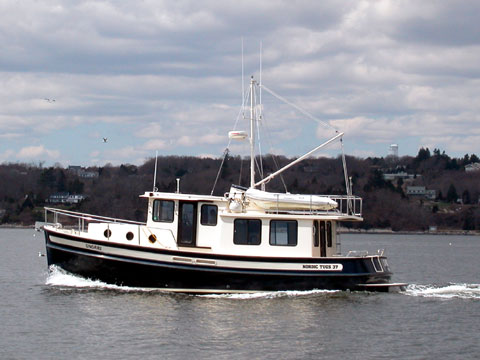

Snorri, Nordic Tug 37-049, was built in Burlington, WA.,
completed in April, 2001, and trucked to New England. She is a
fine example of Nordic Tugs' reputation for rugged craftsmanship,
a quiet ride, and reliable and fuel-efficient performance. Snorri
is a 39-foot trawler tug with a pilothouse, salon/galley, head
and two staterooms. On deck she has a partially covered aft cockpit,
and a sundeck above the salon. Powered by a 330 hp Cummins diesel,
she can reach a top speed of 16 knots and cruises economically
at 8 knots, burning only 3.5 gph. Like all Nordic Tugs, she features
a semi-displacement hull with a full keel, hard chine, and fine
entry bow—a combination that provides a quiet and stable
ride. She boasts the famous Nordic Tug pilothouse with convenient
360 degree views and direct access to the deck from both sides.
The beautiful salon is both practical and comfortable. Her thoughtful
design and quality construction feels like home and is ideal for
entertaining or extended cruising.
Snorri's interior is well appointed with extensive
factory customizing: teak and holly sole in the salon and pilothouse,
teak armrests on pilothouse seats, teak valences in the salon,
teak pneumatic dining table, teak cabinets flanking both sides
of the queen berth, and custom designed office/library/guest
stateroom with teak desk, book cases, and hanging locker. Many
of these customizations were later adopted as standard
equipment by the Nordic Tugs factory.
Her original owners, Herb Nickles and Wendy
Shepherd, based Snorri's design on thousands of nautical miles
of cruising experience on both coasts. Her systems were designed
for cruising by cruisers. Options include bow thruster, generator,
inverter, air conditioning with reverse-cycle heat, salt-water
washdown, tank monitors on all tanks, dual racor filters, 48-mile
radar, gps, autopilot, VHS, sunlight-readable display, laptop
navigation setup, USB network, cell phone antenna and booster,
anemometer, barometer, tide clock, stereo/CD with 6 speakers,
12/110v color TV/DVD, line cutter on prop, swim ladder, top deck
rails, dinghy davits, custom mast and boom, deck lights, windlass,
two anchors and rodes, large ball fenders, braided dock lines,
cockpit shower, 3 burner propane stove and oven, microwave, AC/DC
refrigerator/freezer, and more!
Snorri is truly a one-of-a-kind Nordic Tug.
Her new owners have relocated her to Essex, Connecticut.
|
Length
overall 39' 2"
Beam 12' 11"
Draft 48"
Displacement (at sea trial) 23,000 lbs.
Bridge clearance (mast down) 14' 7"
Bridge clearance (mast up) 26' 0"
Waterline to peak of bow 6' 8"
Freeboard (at cockpit) 4' 3"
Freeboard (amidships, at pilot house door) 5' 2"

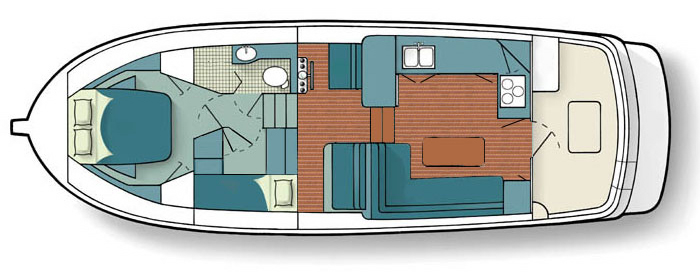

Click Image for Larger Diagram
|
|

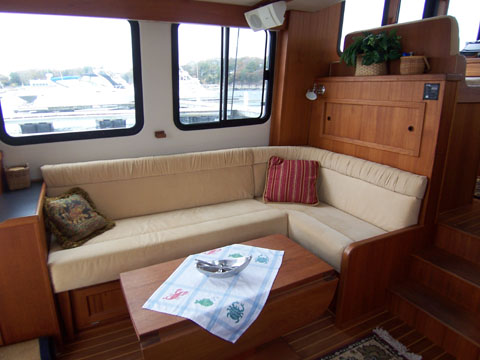

Salon |
Teak and holly sole |
Teak hanging locker next
to settee |
Teak valences |

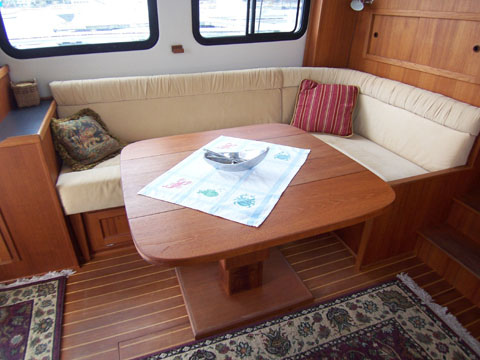

Solid Teak pneumatic table |
Ultrasuede
upholstery on settee |

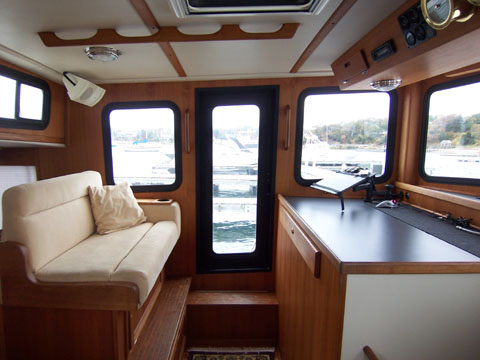

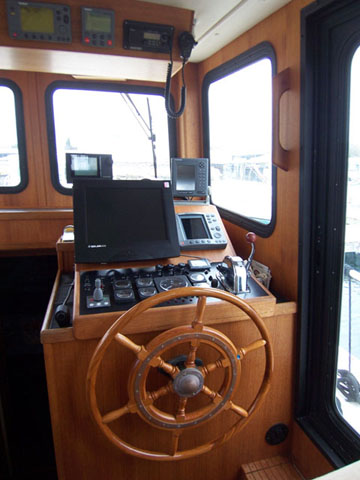

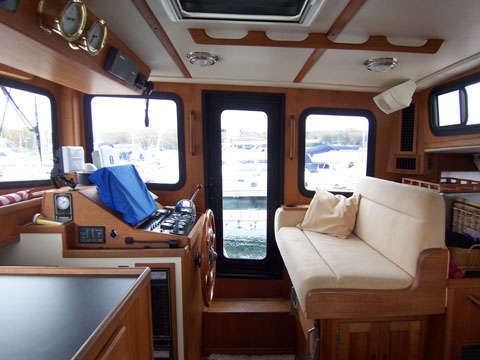

Pilothouse |
Teak and holly sole |
Helm and passenger seats
with custom designed teak arms |
Ultrasuede upholstery on
seats |
Custom
teak instrument panel at helm |

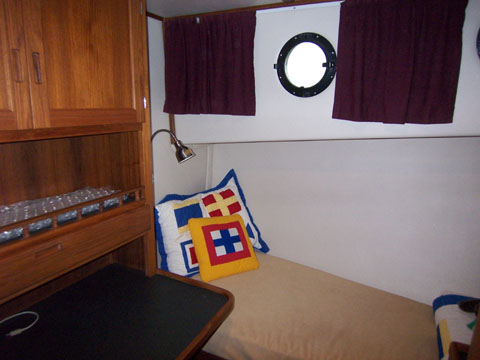

Guest
Stateroom |
Single berth with Ultrasuede
upholstery |
Custom teak desk with bookcase
above |

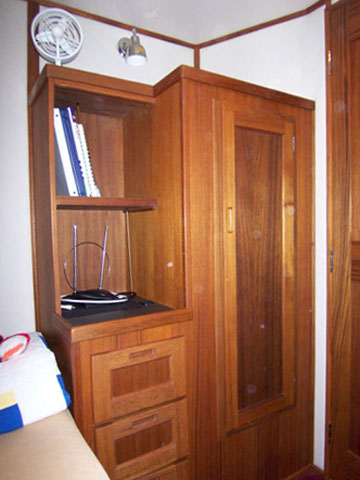

Custom teak chest of drawers
with shelves above |
Teak hanging
locker |

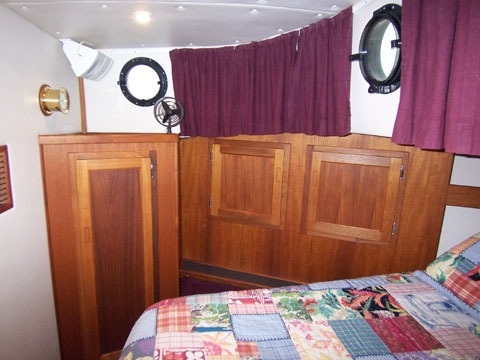

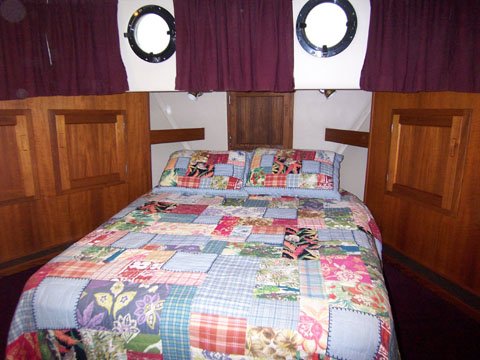

Owner's Stateroom |

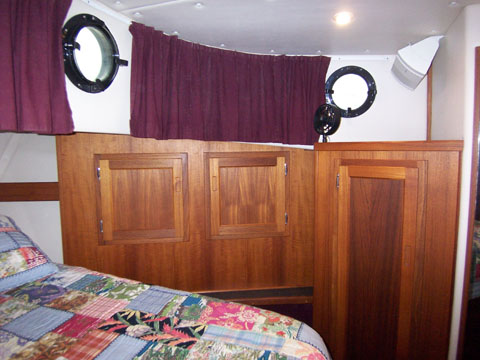

Custom teak cabinets added
on both sides of queen berth |

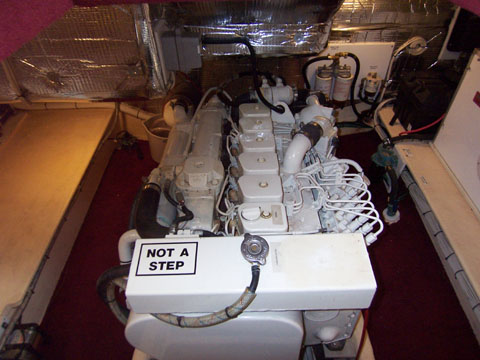

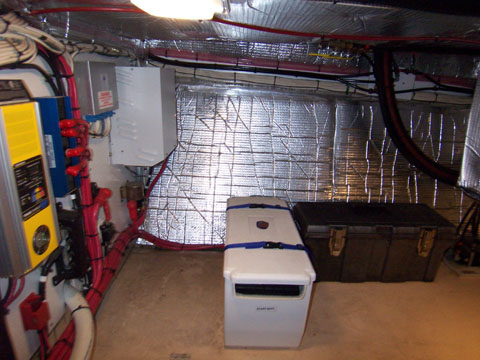

Engine |
330hp CUMMINS
6BTA 5.9M diamond series engine |
WALKER Air
Sep filter system |
Dual RACOR
# 75/B32009M fuel filters |
GROCO bronze
sea strainer |
TWIN DISC reduction
gear, 2.45:1 |
PSS dripless
seal on propeller shaft |
6hp, 12v SIDEPOWER
bow thruster |
TELEFLEX hydraulic steering |
Large tool
box mounted in engine room |

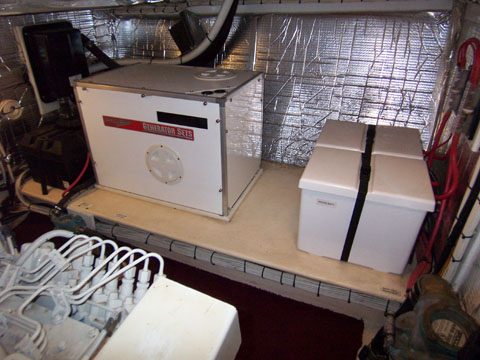

Generator |
5.5KW NORTHERN
LIGHTS 110v AC generator with sound shield |
RACOR #120RMAM
fuel/water separator, generator |
GROCO bronze
sea strainer |

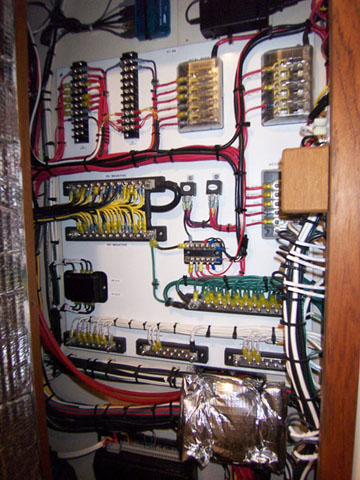

Electrical
Systems |
HEART INTERFACE
DC/AC Inverter, 2500 watt |
Four 6v golf
cart house batteries (new 2006) |
12v 4D start
battery |
12v 4D bow
thruster/windlass battery |
Group 24 generator
start battery |
STATPOWER 40 amp. battery
charger |
Dual 30 amp shore power
connections and two 50' cables |
Telephone/cable TV shore
connection |
Telephone and cable TV
outlet in salon |
12v outlets
(4) - chart table (2), helm & guest stateroom |
HVAC Systems |
Air conditioning, OCEAN
MARINE reverse cycle, 2 units, 16,000 BTU and 12,000 BTU |
GROCO bronze sea strainer
for air conditioning system |
HEATERCRAFT
forced air heat from engine fresh water coolant system |
HEATERCRAFT
defroster system for windshields |
Three windshield wipers
and washers |
DIAMOND SEA
GLAZE doors (3) and windows (17, 6 opening with screens) |
8" round ports with
screens - 4 in owner's stateroom, 2 in guest stateroom, 2 in head |
Curtains on sliding tracks
in both staterooms and head |
16" x
16" BOMAR hatch in owner's stateroom |
16" x
16" BOMAR hatch in pilothouse |
OCEAN AIR retractable screens/shades
on both hatches |
PHANTOM retractable screen
on cockpit door in salon |
Pleated shades on salon
windows |
Two HELLA 12v fans in owner's
stateroom |
HELLA 12v fan in guest
stateroom |
Tankage |
Fuel - 370
gal. in 2 tanks |
Water - 150
gal. in 1 tank |
Waste - 40
gal. in keel with deck suction |
Gray water
(shower) - 9 1/2 gal. in keel |
12v automatic
fresh water pressure pump |
Grey water
automatic 12v pump |
Macerator with
overboard discharge |
SS 11 gal.
hot water tank; 110V/engine with winter bypass valves |
Tank monitor
for waste water tank |
TANK TENDER
system for monitoring fuel and water levels |
3, 2000 GPH
RULE bilge pumps, auto/manual |
Manual bilge
pump in engine room |
2" fuel
fills (2), 1 1/2" water fill (1) |
SS 1 1/2"
waste suction fitting |

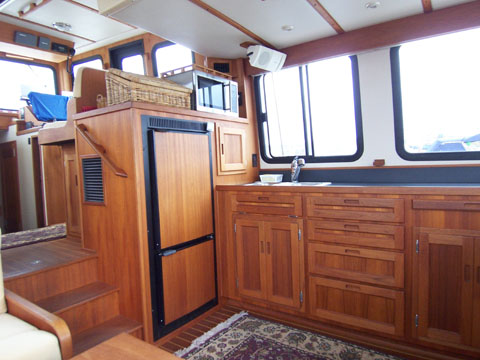

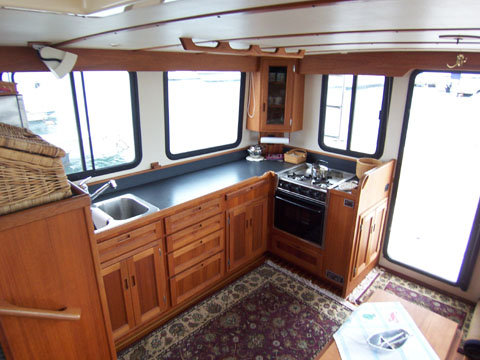

Galley |
NOVA KOOL #FRU
8000 over/under refrigerator/freezer 110v/12v |
Double, deep
SS sink with GROHE spray faucet and Culligan water purification system
|
Propane system:
aluminum tank, regulator, sensor, shut off valve |
PRINCESS 3-burner propane
stove with oven and broiler |
OREGO staunless steel microwave |
Teak spice rack and paper
towel holder |

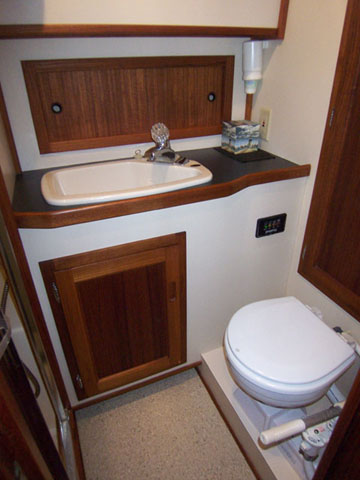

Head |
RARITAN porcelain head |
Fiberglass
shower with seat & glass shower door |
Deck |
SS Bow anchor
chock with roller |
LOFRANS Kobra
1000 watt horizontal windlass |
SS bollard
with 12" square aluminum backing plate |
Seawater wash
down at bow |
HEATERCRAFT
cockpit shower (hot & cold) |
12" SS
deck cleats (8) and SS bow chocks (2) |
Cockpit and
sundeck flood lights |
1 1/4"
SS bow and stern rails |
Salon roof
sundeck pkg. with SS rails & ladder |
BROOKS MARINE
custom tabernacle mast and boom with HARKEN winches |
ST. CROIX removable dinghy
chocks |
Radar reflector in stack |
Dual electric trumpet horns |
Teak outboard
motor bracket on sundeck rail |
Compass |
RITCHIE Lighted
Binnacle Compass |
Radar |
RAYMARINE RL74C
Color Radar with 4kw Radome |
Sonar |
FURUNO FCV600L
Color Sounder |
Transducer - thru-hull
#520ST-MSDF |
INTERPHASE
forward scanning sonar, transducer, and R-A-M Mount |
GPS |
RAYMARINE Raystar 125 GPS
Sensor |
RAYMARINE Raynav
300 (acts as repeater) |
VHF |
ICOM IC-m59
Black |
RAYMARINE handheld VHF
|
SHAKESPEARE
5206C Antenna |
Cellular
|
DIGITAL ANTENNA DA4000
Cell Phone Amplifier |
SHAKESPEARE
4800 galaxy series antenna |
Auto
Pilot |
RAYMARINE Autohelm
ST6000 |
Computer |
SOLARISM LM1503
15" XGA flat panel display 800 nits (sunbright) with isolated
video cable to laptop |
R-A-M Mount
for Flat Panel Display |
R-A-M Arm and Laptop Tray
(Captn. Jacks CA-201H) |
USB network
between chart table, helm, guest stateroom/office, and engine room
to support printer in office, camera in engine room, and touch pad
at helm |
Stereo/CD |
CD Player -
BLAUPUNKT Alaska RDM168 |
Speakers -
BOZE Model 100 (2 ea. in salon, pilothouse, and forward stateroom) |
SHAKESPEARE 5120 AM/FM
Antenna |
TV/DVD |
TOSHIBA 9" color TV/DVD
player 12/110v with remote |
Time
& Weather |
MAXIM brass tide clock |
MAXIM brass wind gauge
with anemometer on mast |
WEEMS & PLATH barometer |
WEEMS &
PLATH brass stricking ships clock (2) - pilthouse & owner's stateroom |
Between
2001 and 2007, Herb and Wendy cruised 7,000 nautical miles on Snorri
throughout New England, including three trips to Maine and Canada
and a cruise up the Hudson to Lake Champlain. Here are a few photos
from those cruises.
Left to right, top to bottom: Herb lobster fishing in Frenchbrro,
ME; Locking through the Champlain Canal; Sunset in Vinylhaven,
ME; Snorri passes cruise ship in Vinyard Sound, MA; Wendy saves
the day, West Quoddy Head, ME; The Kid Captain on the Westport
River, MA; Launch day in Essex, CT; SNOWRI; Head Harbor,

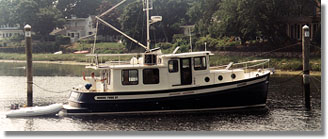

Campobello Island, Canada; On mooring in Wickford Cove, RI.
|
 |
 |
 |
 |
 |
 |
 |
|
