Specifications





Dimensions

LOA: 34' 7"
LWL: 32' 7"
Beam: 11
Displacement: 16,000
Draft: 3'6"

Engine

Engine(s): Cummins
Engine(s) HP: 220
Engine Model: 6BT5.9M
Cruising Speed: 8 knots
Max Speed: 16 knots

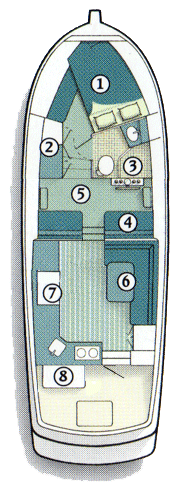

Galley & Salon

Force 10 Propane stove & oven
Nova Kool side by side refrigerator & freezer (7)Teak valences
Day/night shades
Privacy & insect screens on aft door
Sony 15" flat panel TV
Bose speakers
Ultra Suede settee converts to double berth (6)
Teak dining table


Pilot House

Two Ultra suede bench seats (4)
Fold out foot rests
Privacy & insect screens on port & starboard doors
Bomar hatch
Alpine AM/FM/CD Player
Bose speakers
Engine room access hatches (5)
Electronics - see below

Forward Stateroom

Double offset berth with storage under (1)
Hanging & storage lockers (2)
Bomar hatch

Head

Vacuflush toilet
Separate shower (3)
Lighted mirror



Electronics & Navigation

Macintosh Mini
Argonaut 15" Marine Monitor
Coastal Explorer Software Raymarine Raystar 125 GPS
Raymarine RL-74C 7" radar
Raymarine 4 kW radar dome
Raymarine ST 7001 Auto Pilot
Auto Pilot Remote ST 600R
Raymarine ST 60 tri-data
NMEA to SeaTalk Interface Box
Standard Spectrum VHF
Shakespear VHF antennas
Hailer

Deck

Lofrans Kobra Windlass
Sampson post
Sea water washdown, bow & cockpit
Cockpit hot & cold shower
Brooks Bimini over cockpit
Sea wise dinghy system
Carabe Rib 9.1' dinghy
8 HP Yamaha outboard
1 1/4" SS rails
Pony mast
Life sling rescue harness
Deck box in cockpit (8)

Mechanical

Bow thruster
Espar diesel forced-air heater
Air conditioning
ShowerMate Propane Tankless Water Heater
Reverso oil change system
Fire Boy supression system
Macerator
Dual 30 AMP shore power
Telephone & Cable TV shore connector

Tankage

Fuel: 200 gal.
Water: 100 gal.
Holding: 30 gal.
